Handle Applicator machine to put sloping handle

Automatic machine to apply self-adhesive handles made of a special transparent tape and carton label directly on PET bottles

  • 1 - L’arrivo dei pacchi

    1. Due trasportatori laterali a pioli separano la quantità di contenitori richiesta per formare il lotto che viene poi portato alla stazione nastratura.

  • 2 - Applicazione fascia adesiva

    Due nastratori laterali applicano il nastro adesivo creando una sovrapposizione anteriore e posteriore regolabile da 10 a 20 mm. (sistema brevettato).

  • 3 - Distesa nastro

    Un rullo motorizzato svolge il nastro

  • 4 - Applicazione maniglia

    Una volta erogata la quantità di nastro prefissata, la macchina lo taglia e ne applica un lembo sulla parte anteriore e posteriore del pacco, in eguale misura

DESCRIPTION

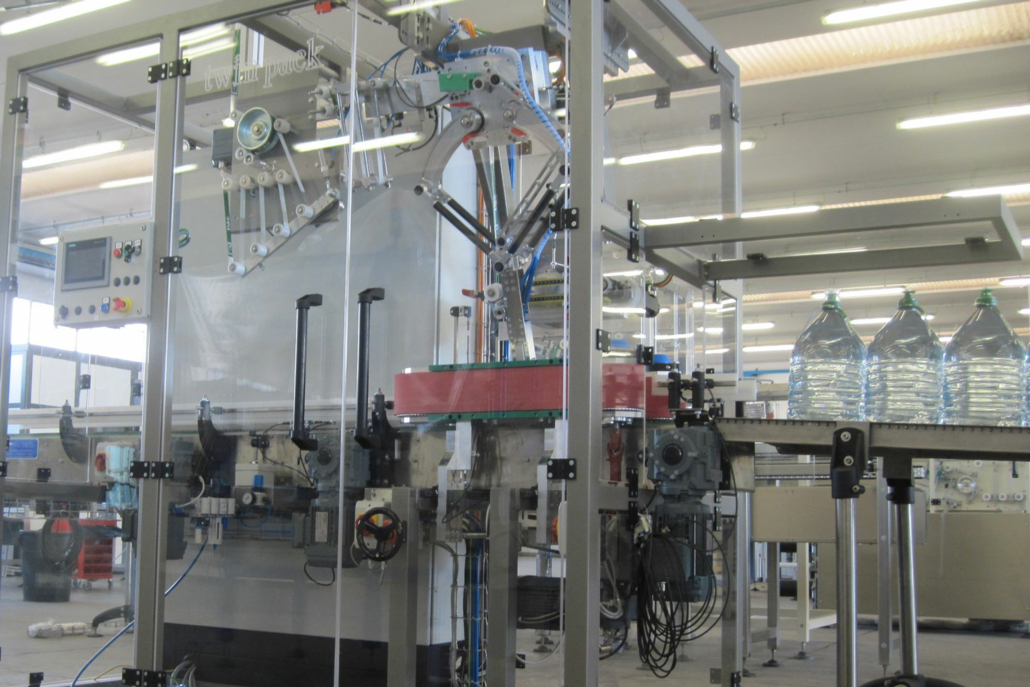

Automatic machine to apply self-adhesive handles made of a special transparent tape and carton label directly on PET bottles.

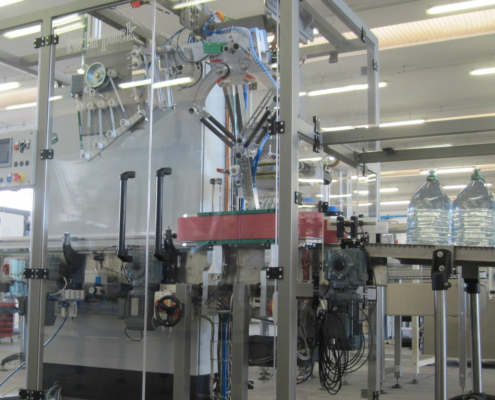

The bottles arriving on the machine’s slat conveyor are slowed down and spaced automatically, through several Intralox conveyors belts.
The adhesive handle-tape is uncoiled by an electronically-driven roller according to the bottles flow.

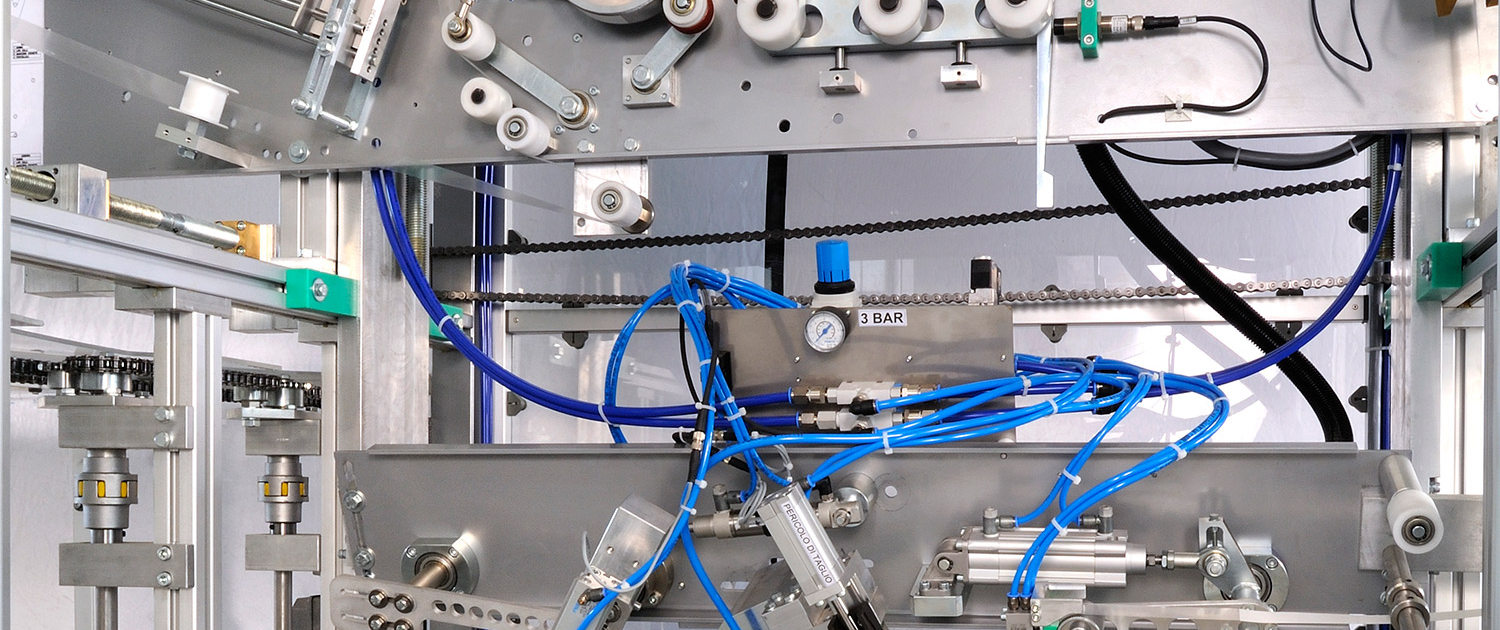

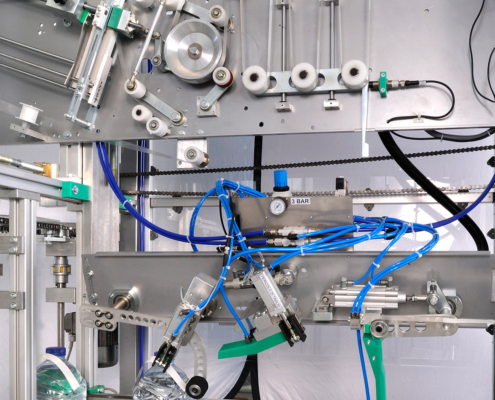

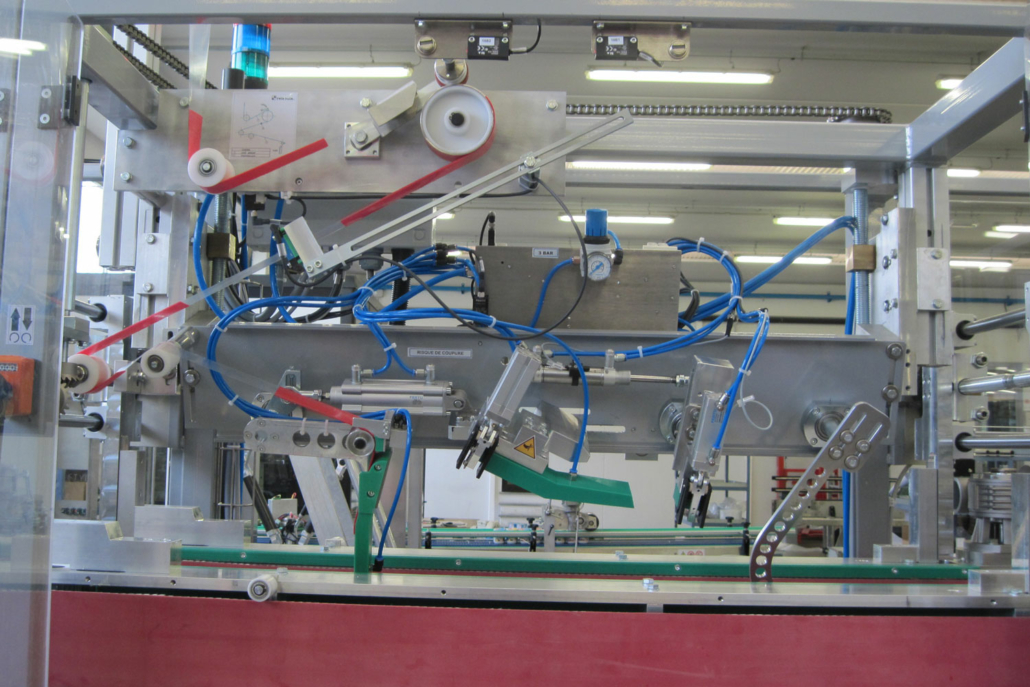

Handle-cardboard (or other materials) lamination to the adhesive tape is performed continuously through a mechanic double-cam device.

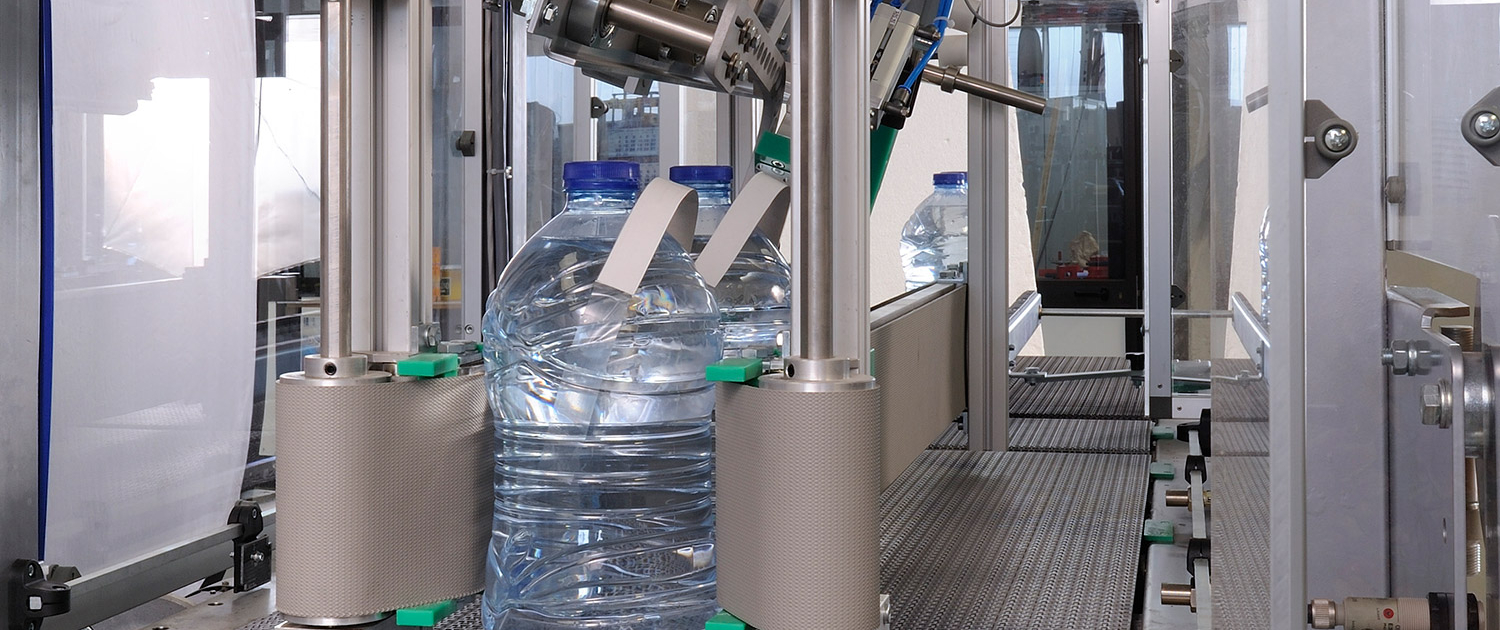

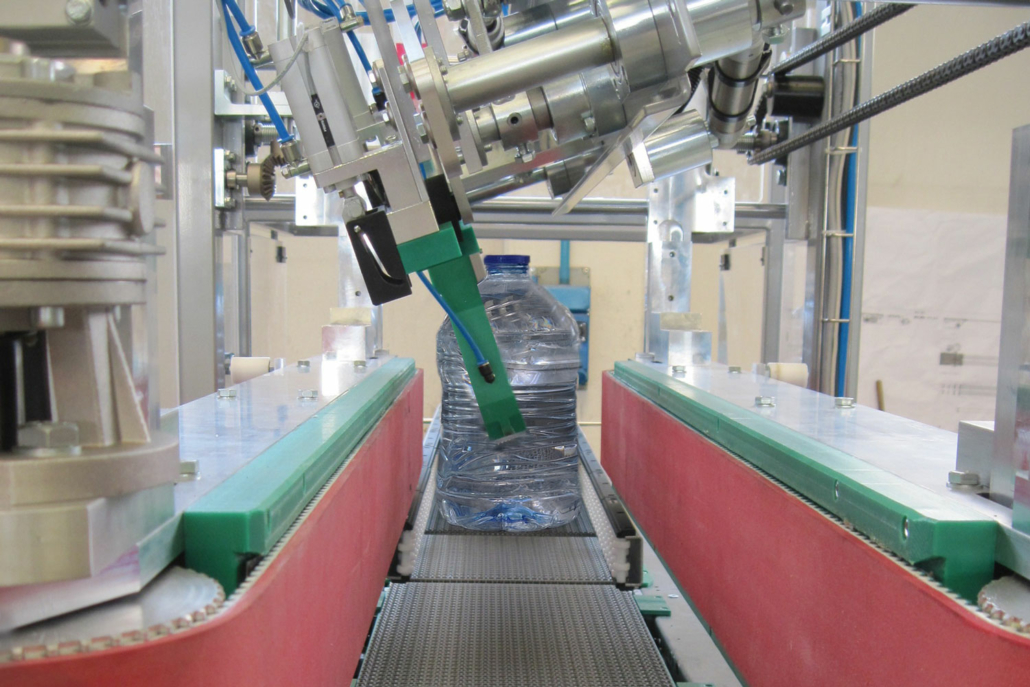

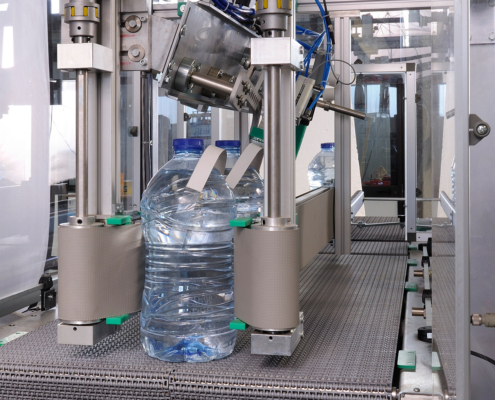

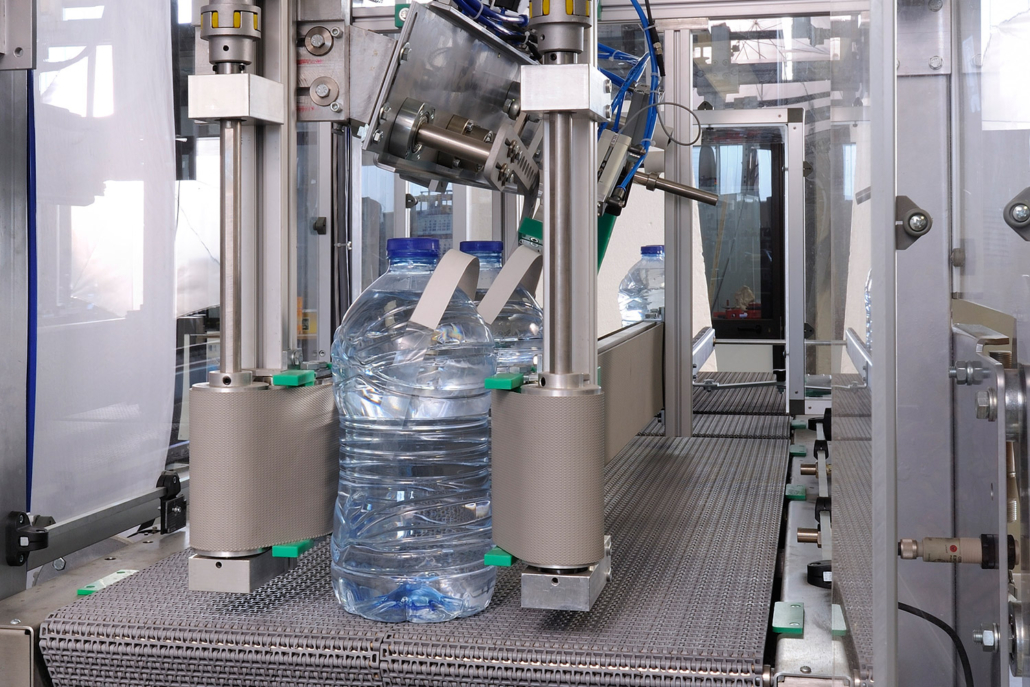

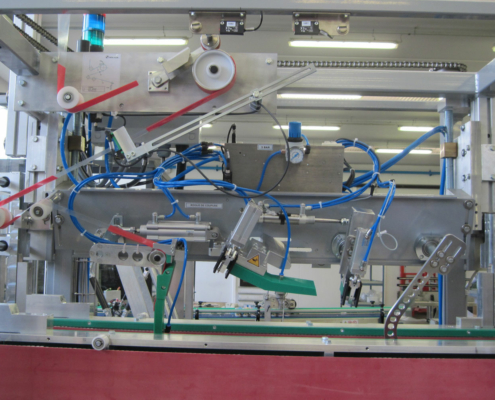

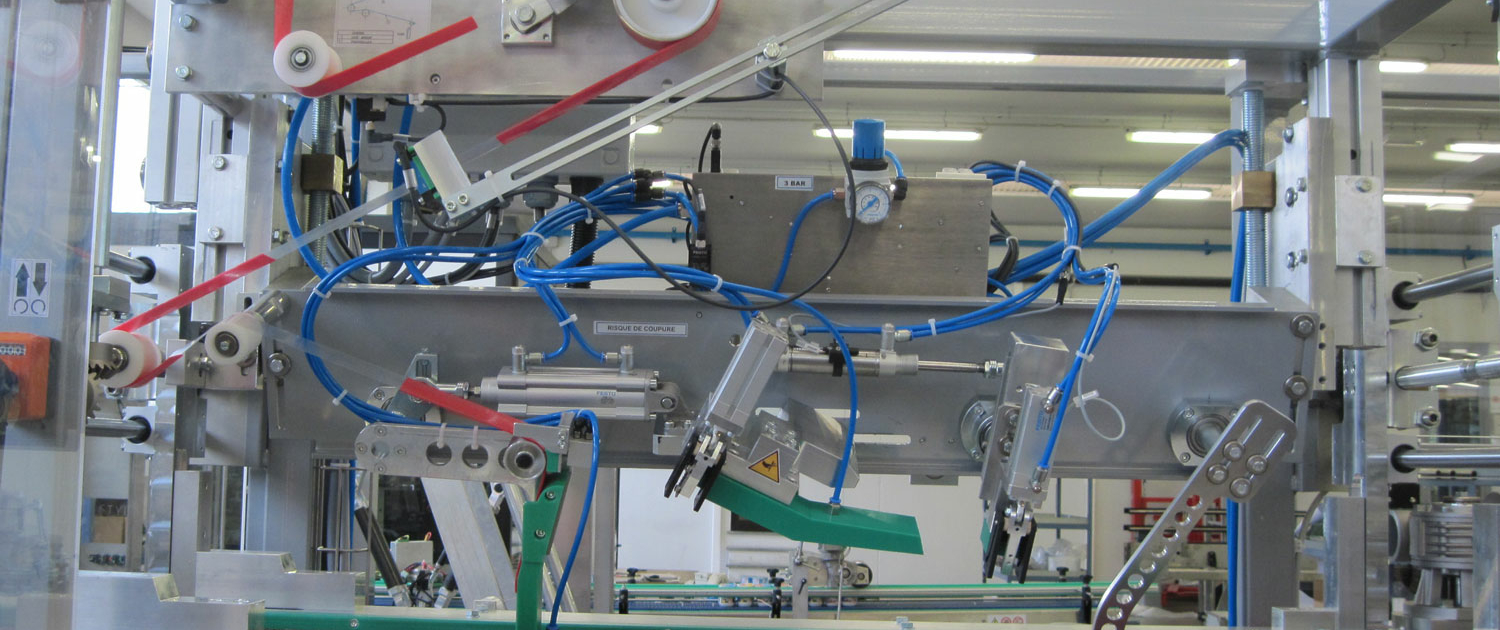

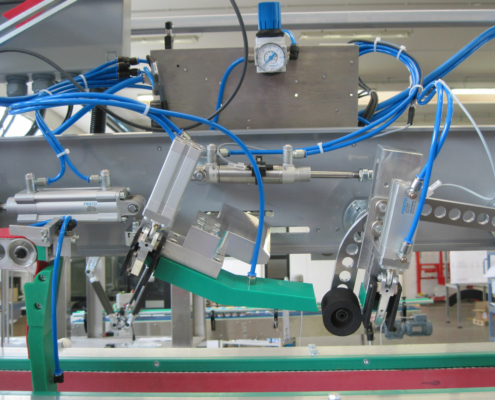

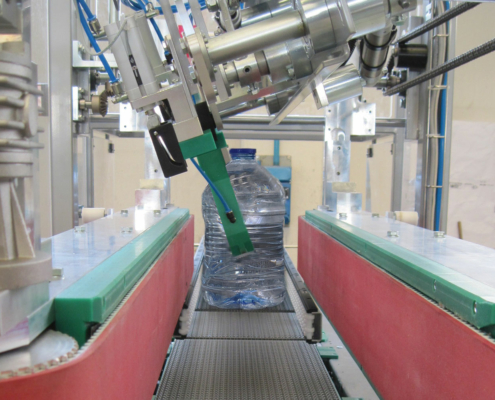

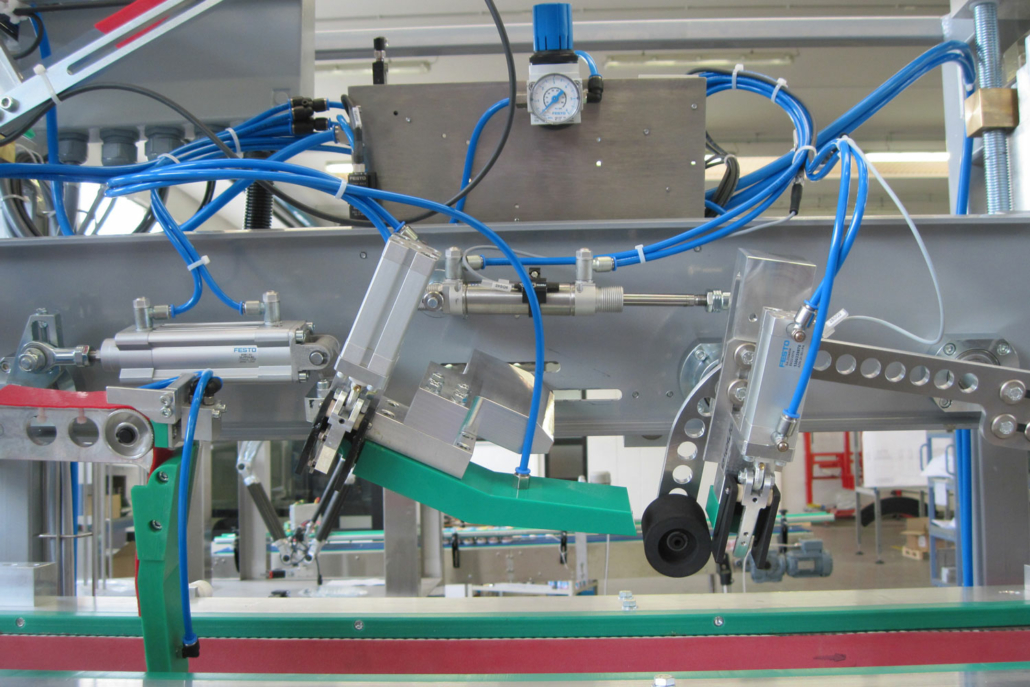

The handle thus obtained is pasted continuously on the bottles in transit through a series of pneumatic arms with a suitable inclination. The adhesive tape is cut by a cutting group equipped with a cam-driven blade.
The handle and cardboard is electronically centred, allowing the machine to catch up on possible mistakes and performing automatically the re-positioning.
The handle-tape is in transparent mono-oriented polypropylene laminated with cardboard (or other materials) that could be blank, coloured or printed with advertising signs and/or images. The machine can work with laminated adhesive tape.
Each head can be provided with a second reel holder for 5000-metre adhesive tape reels.

TECHNICAL FEATURES

Min-Max speed in single line: from 25 bpm up to 70 bpm
Min-Max speed in double line: from 25+25 bpm up to 70+70 bpm
